Sunday, 21 February 2016

Frame CAD assembly

Having all the parts cleaned an painted seemed like a good opportunity to measure them up and model them in CAD. So now all the major parts are drawn and it looks like the motor is only just going to fit, it did come with a back plate to create a ventilation space and also protect the encoder on the back of the motor. However there is definitely no space for that so I've assumed it can't be fitted.



Chassis CAD stp file

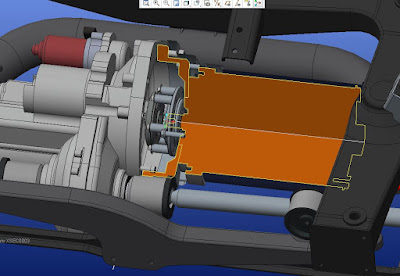

This view shows the motor and motor mount sectioned and the motor shaft mount and clutch spline.
I've bought a taperlock bush and flange plate to lock onto the motor shaft. The taper lock is a 1610 size with a 1 1/8" bore, the plate is a BF16 plate which is 120mm diameter with 6 x 8mm mounting holes at 110mm PCD.
Instead of buying a whole Smart clutch plate which normally comes as a complete assembly I've found that a Ford fiesta MK1 1.0 clutch plate fits the 19mm 17 spline shaft perfectly, just a few £s from ebay. So the plan is to cut off the clutch friction plate and use the inner plate and probably keep the springs as they will act as a bit of a shock absorber which might be useful.
